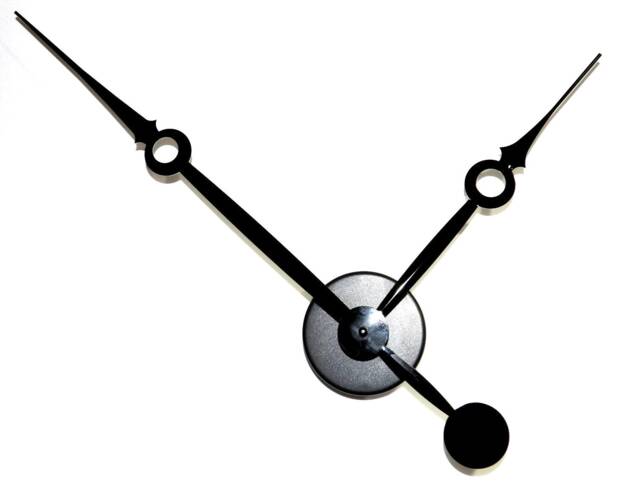

Number 7 Hand Set, 14

Minute Hand Length: 14 from the mounting hole to the tip. The total length is 18- end to end. Hour Hand Length: 9- from the mounting hole to the tip. The total length is 10- end to end. The hub is 3- deep & 1 long. It includes 3 small Phillips screws & a small Phillips screwdriver. The back plate has a built-in compartment for the battery. It can be painted any color, just be sure to put a coat of primer on before so the paint sticks to the hub. You choose between 3 threaded shaft lengths. (The options are listed below) The motor is a silent high torque, it does not tick or step gear, it is a quiet continuous motor. The motor case is 2-1/8 sq x 5/8 thick. Options 1/4 threaded shaft, total length is 5/8 including hand stem. 7/16 threaded shaft, total length is 13/16 including hand stem. 9/16 threaded shaft, total length is 15/16 including hand stem. 3-Year Warranty Motor requires 1 AA battery (not included) Necessary hardware is included A photo of the assembly will be attached to your order confirmation order. It is packed securely in a 24x3x3 mailing box. NOTE ON MEASURING: Shaft length is a brass threaded portion that must pass through your clock face, leaving a couple of threads to mount the retaining nut. (ex., if working with a 1/4 tile as your clock face....then order a 7/16 or 9/16 threaded shaft) MEASURING DIAL FOR HAND SIZE: measure from the top of #12 to the bottom of #6, & divide it in half. This will give your approx. minute hand length. Check out all my other items: https://www.etsy.com/shop/clockparts?ref=simple-shop-header-name&listing_id=570076876 Number 7 Hand Set, 14
