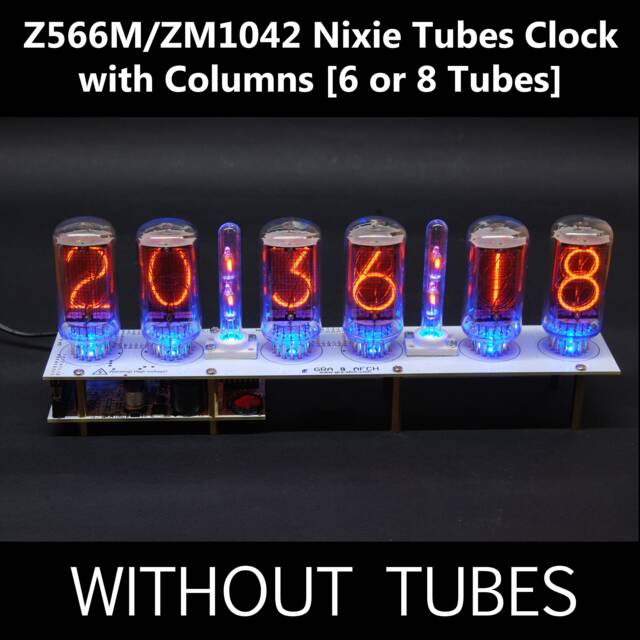

Nixie Tube Clock Z566MM1042 For 6 Or 8 Tubes With Columns, Arduino Comp. Without Tubes Boyfriend Vintage Glowing Gift Steampunk

ZM1042 NIXIE TUBES CLOCK [4 6 8 TUBES] [TUBES, COLUMNS, TEMP. SENSOR, POWER SUPPLY] NOTE: UPS EXPRESS DELIVERY IS HIGHLY RECOMMENDED ECONOMY SHIPPING CAN BE VERY SLOW & UNRELIABLE Project Divergence Meter Z Nixie Tubes Clock with Columns & Sockets Designed for 6/8 Z5660M / Z566M / ZM1042 / ZM1040 Tubes Z5660M Tubes are one of the biggest mass-produced Nixie Tubes Nixie Clocks are one of the most beautiful & popular Vintage Clocks Clock features Startup Tune, RGB backlight, USB port for updates Nixie features Sockets & options include Tubes, Columns, Power Supply Pluggable Accessories include compact external Temperature sensor Nixie Clock is fully compatible with Arduino platform program codes It allows you to write your own unique programs for the Arduino platform All the latest Source codes are always available on our GitHub channel PCB, Design, Schematics, Case & Software made by GRA & AFCH LISTING INCLUDES: - Nixie Tubes Clock with Sockets (NCT3566+Ncm109 Boards) - Z5660M Nixie Tubes - 6 pcs Set (optional, choose in selector) - Columns with Dots - 2 pcs (optional, choose in selector) - Temperature sensor (DS18B20) (optional, external with jack 3.5 mm) - Power Supply (12V, 1A) (US, EU, UK, AU) (optional AC plug, choose in selector) - User Manual on Vintage style paper Nixie Board features Socket pins for Nixie Tubes Columns with separating Dots are optional for the Clock Temperature sensor with jack 3.5 mm is optional for the Clock Power Supply is optional for the Clock OUR BENEFITS: - All our Nixie Tubes Clocks are using HV513WG chips, - it provides higher brightness in multiplexing mode in comparison with HV5812 chip & greater reliability compared to legacy K155ID1 - We offer flexible Tubes Boards platform, that support many Nixie Tubes - (out Tubes Boards designed for IN-4, IN-8, IN-8-2, IN-12, IN-14, IN-16, IN-17, IN-18 & Z573, Z5660M, ZM1042, Z568M Nixie Tubes) - It is easy to build a beautiful Nixie Tubes Clock with our Boards, we also offer Acrylic, Wooden & Stone Cases for our Clocks - Fast uploading pf the Firmware via USB to the Control Board - All the latest version of the Firmwares to all our Nixie Clocks are always available on our GitHub channel - No need for additional drivers, we are using only genuine USB-to-serial converters (FTDI), - drivers for them are pre-installed in all popular OSes: Windows, MacOS, Linux - It is easy to modify the Nixie Clock's Firmware functions for your tasks due to the open Arduino platform - We use High Quality PCBs & Components, also we use Japanese aluminum capacitors only for our Boards (Nichicon, Panasonic) - Tubes Board is easy to modify by cutting if you want to build 4 Tubes Clock [HH:MM] from 6 Tubes Clock - Our Nixie Boards use Power On Self-Test (POST): LED backlight flashing,Tubes flashing & Start up Tune. Our Boards use, - Firmware version can be seen at the end of the POST test - Our Tubes Boards use Unique detailed Tube test, soft test checks each Tubes segment on every Tube so it distinguishable to see segments failures - We provide competent technical support for all our products SOFTWARE FEATURES: Clock support many kinds of Nixie tubes (4 tubes [hh:mm], 6 tubes [hh:mm:ss] & 8 tubes [hh:mm:ss:uu/Temp]). 12/24 hour format. Date format: DD:MM:YY or DD:MM:YYYY Slote Machine (Ani poisoning) Unique RGB LEDs backlight with 16,7 million colors. Very easy to switch LEDS off/on. As alarm sound clock uses standard RTTTL (Nokia format) melodies, so You can easy change it. (included songs: mission impossible, we wish you). Easy updating firmware via USB using Arduino IDE. Software based on Arduino sketch, so MCU has Arduino bootloader within. Power On Self-Test (POST): LEDs test, tubes test, input voltage test, sound test. HARDWARE FEATURES: Shematic that prevent blue spot effect inside IN-18 tubes. Full static displaying mode. No flickering. High brightness. High contrast. Integrated High Voltage Power supply 150 - 220V. 3 PWM channels for RGB LEDs 8 bit per channel = 24bit = 16,7 million colors. It can be disabled in the menu (see manual). Test points for testing, adjust & control low & high voltage circuits. Pads for internal buttons & terminals for external buttons. Pads for internal USB connector & terminals for external USB. Terminals for internal & external power connector. 2 dots column with separate controls upper & lower dots. Power consumption: 12V, 1000mA (Recommended power source: voltage 12V, current 1-2A). MCU board Ncm107 has world smallest
