Diy Klt For In-18 Nixie Tubes Clock [6, 8 Tubes] Arduino Compatible Boyfriend, Husband, Vintage, Glowing Clock, Gift, Steampunk

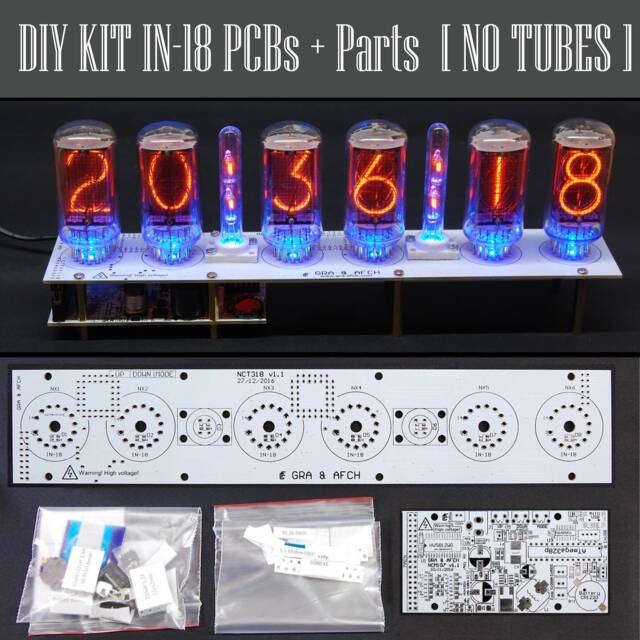

DIY KIT FOR IN-18 Ncm109+NCT318(NCT818) NIXIE TUBES CLOCK [TUBES, SOCKETS, COLUMNS, TEMP. SENSOR, POWER SUPPLY] DIY KIT with boards & electronics parts for Nixie Clock on IN-18 Tubes. Project Divergence Meter has modular system, so you can build clock with 4 or 6 or 8 tubes. For clock with 6 tubes you need one MCU board Ncm107 & Tubes board NCT318, for 8 tubes you need additinal one tubes board NCT818. To get clock on 4 tubes You can cut tubes PCB along the line, see photo below. PCB design, schematic, housing & software made by GRA & AFCH. Set includes an unassembled board(s) - bare PCB(s), electronic parts, MCU (microcontroller unit) ATmega328P flashed with Arduino Uno Bootloader & sketch (Firmware). Kit compatible with Arduino Uno, so it allows you to write your own unique programs on the Arduino platform, the latest sources are always available on github.com/afch/NixieClock. Lot contains bare PCBs & all necessary parts (WITHOUT tubes): 1 pc of MCU board: Ncm107 (If You want build your own CUSTOM nixie tubes clock, You may buy only MCU PCB). 1 pc of Tubes boards: NCT318. 1 pc of Tubes board: NCT818 (for extra pay)! ( For build 8 Tubes clock) www.ebay.com/itm/182575895901 Flashed MCU with Arduino bootloader & NixieClock sketch firmware. Set of ALL needed parts(electronical, mechanical components & etc. Full list see below). User manual on vintage-style paper. Paper electrical schemes. Software Features: Clock support many kinds of Nixie Tubes (4 tubes [HH:mm]; 6 tubes [HH:mm:SS] & 8 tubes [HH:mm:SS:UU/Temp]). Date format: 4 tubes [DD:mm]; 6 tubes [DD:mm:YY]; 12/24 hour mode. Slot Machine (Anti poisoning - tubes saving function. Increases the service life). Unique RGB LED backlight with 16,7 million colors. Your can choose any constant color off backlight LED & memorize it. Or you have option for a cyclic full spectrum color change! Switching on/off LED backlight in the matter of seconds. As alarm sound clock uses standard RTTTL (Nokia format) melodies, so You can easy change it. (included songs: Mission Impossible, We Wish You...). Easy updating firmware via USB using Arduino IDE. Software based on Arduino sketch, so MCU has Arduino bootloader within. Power On Self-Test (POST): LED backlight, tubes & sound. You can check firmware version at the end. Unique detailed tube test - our soft check each segment on every lamp. Distinguishable to see segment failure. Hardware Features: Special schematic that prevent blue spot effect inside IN-18 tubes. Full static displaying mode. No flickering. High brightness & contrast. Integrated High Voltage Power supply 150 - 220V. 3 PWM channels for RGB LEDs 8 bit per channel = 24bit = 16,7 million colors. It can be disabled in the menu (see manual). Test points for testing, adjust & control low & high voltage circuits. Pads for internal buttons & terminals for external buttons. Pads for internal USB connector & terminals for external USB. Terminals for internal & external power connector. 2 dots Column (digits separator) with independent controls for upper & lower dots. Power consumption: 12V, 1000mA (Recommended: 12 VDC, not less than 1A ). Ncm107 MCU board size: 100 x 50mm (world's smallest dimension) NCT318 Tubes board size: 264 x 50mm NCT818 Tubes board size: 94 x 50mm SHIPPING & RETURN INFORMATION All Items are shipped from Ukraine Via International registered Airmail Shipments are made within 1 business day After the payments are received & verified It takes about 4-7 days via UPS Express delivery It takes about 10-18 days via Standard shipping It takes about 35-45 days via Economy shipping We combine multiple Items to save on shipping UPS Express Shipping time (recommended): Europe: 3-5 days Germany: 3-5 days USA, Canada: 4-7 days Asia, South America: 5-7 days Australia, New Zealand:5-7 days Africa, Central America:5-7 days Standard Shipping time: Europe: 10-12 days Germany: 25-30 days USA, Canada: 10-15 days Asia, South America: 10-18 days Australia, New Zealand:12-18 days Africa, Central America:12-18 days Economy Shipping time: Europe: 25-30 days Germany: 25-30 days USA, Canada: 30-35 days Asia, South America: 35-45 days Australia, New Zealand:45-55 days Africa, Central America:45-55 days Return Policy All Returns are accepted For Return you should contact Us within 14 Days after receiving the Item Refunds are made as Money back or Replacements (buyer's choice) Return shipments are paid by the buyer No restocking fees are charged Diy Klt For In-18 Nixie Tubes Clock
