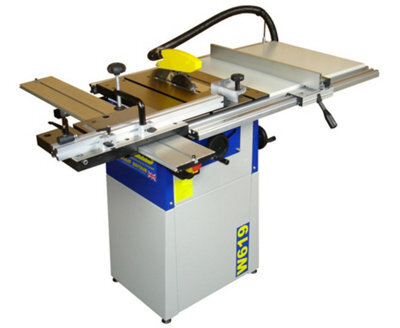

Cast Iron Table Saw with an 8″ diameter blade. Now available with an upgraded quick action precision rip fenceW619 Table saw is a compact, high quality table saw with a quiet induction motor. The main table is precision ground cast iron, and has 2 fabricated side extension tables to give impressive cutting capacities, perfect for the smaller workshop. The induction motor turns the blade via a drive belt which reduces noise and increases accuracy. Blade height and blade angle are controlled using 2 separate hand wheels. The sliding carriage has a cast iron bed travelling on 4 bearing guides. Any angle can be set on the long support fence. A screw clamp holds the work secure and a flip over length stop is fitted for repeat cuts. For quick crosscut jobs there is a sliding mitre fence supplied which runs in one of the T-slots, located on each side of the saw blade. The latest model uses the USA standard width mitre slot, of benefit for those looking to add aftermarket accessories.Supplied with 18 tooth TCT sawblade, sliding carriage, extension tables, floor stand, adjustable feet, push stick, 2.0m power cable and UK 3 pin plug.Charnwood W619 SpecificationMain Table Size 530mm x 1000mmMaximum Ripping Width Using Fence 730mmCrosscut Table Size 400mm x 180mmMaximum Crosscutting Width600mm (700mm Using Reverse Table)Blade Tilt 90 – 45 degreesCutting Depth at 90 degrees 60mmCutting Depth at 45 degrees 47mmBlade Diameter 200mmBlade Bore 30mmWork Table Height 860mmMitre Guide T-Slot Width 19/25mmMitre Guide T-Slot Depth 10mmMotor (induction) 1100w (1.5hp) / 240vNo-Load Blade Speed 4700 rpmMinimum Blade Width (Kerf) 2.6mmDimensions (WxDxH) 1460 x 1010 x 1030mmMin Door Opening:Width In Crate 50cmWeight 90KgRating Light TradeProduct Guarantee 5 Years.
